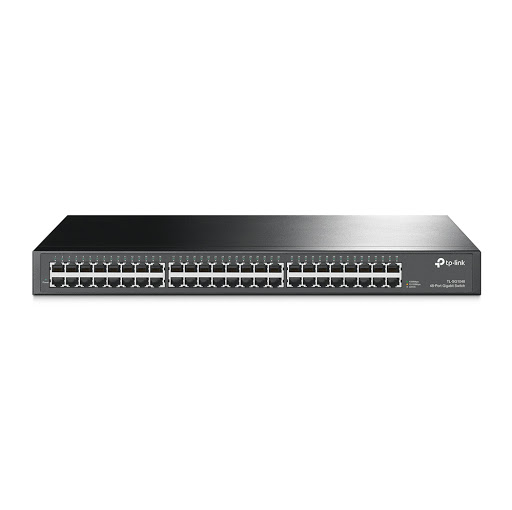

Thông số kỹ thuật Switch chia mạng TP-Link TL-SG1048
| Model | TL-SG1048
|
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) | |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.7 in. |
| (440 x 220 x 44 mm) | |
| Mounting | 19' 1U Rack Mountable |
| (Mounting bracket included) | |
| Max Power Consumption | 32.3W |
| Max Heat Dissipation | 110.2BTU/h |
| PERFORMANCE | |
| Switching Capacity | 96Gbps |
| Packet Forwarding Rate | 71.4Mpps |
| MAC Address Table | 16K |
| Buffer Memory | 12Mb |
| Jumbo Frame | 12KB |
| Transfer Method | Store-and-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | 48-Port Gigabit Rackmount Switch |
| Power Cord | |
| Installation Guide | |
| Rackmount Kits | |
| Rubber Feet | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); |
| Storage Temperature: -40℃~70℃ (-40℉~158℉); | |
| Operating Humidity: 10%~90% non-condensing; | |
| Storage Humidity: 5%~90% non-condensing | |
